21176 - 175A storage cell connector housing kit. (1pc)

21176 - 175A storage cell connector housing kit. (1pc)
21176 - 175A storage cell connector housing kit. (1pc) 21176 - 175A storage cell connector housing kit. (1pc)
Product Code: 21176
Availability: In Stock
Price: $34.90
Ex Tax: $31.73

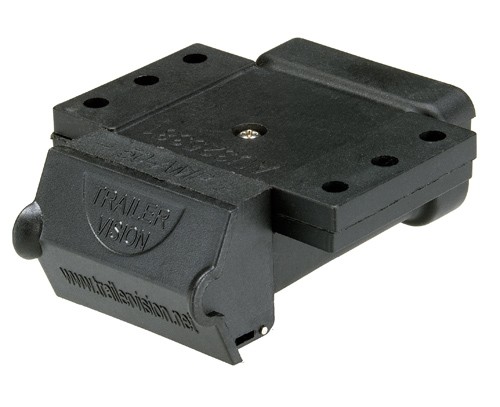

Kit includes a flange mounting housing with a spring hinged cover and cable gasket which helps keep out contaminants and covers potentially live end terminals.

Ships with 21175 SC connector.

Storage cell (SC) connectors are also known generically as ‘Anderson Connectors’.

Mates with all competitor equivalents.

Mates with 21175. The connector is rotated 1800 with mating half and, therefore, polarity aligns itself.

Grey housing is keyed for use with 0-36VDC applications. Other voltages/keying available upon request.

The connector is not weatherproof and should be kept away from moisture and corrosive elements.


Housing features:

Compatible with most competitor connector brands.
Unique lock tab system secures mating connections.
Spring loaded access cover.

Heavy duty PA nylon construction.
Multiple mounting points
Rear entry cable seal
Stainless steel hardware
Supplied with mating lock connector tab


Connector Specifications / features:

Terminal accepts up to 0B&S automotive / 50mm2 CSA / 0AWG  (when crimped) or  2B&S automotive / 33mmCSA  / 2AWG (when soldered)

Maximum/continuous current: 175A

Maximum (grey housing): 36VDC

Insulation withstand tested to: 2200VDC

Contact resistance: 100uOhm

Contact retention force: 136kg

Mating cycles: 10,000

Silver plated contacts

Self wiping during the mating and unmating cycle.

Stainless steel terminal retention springs.
