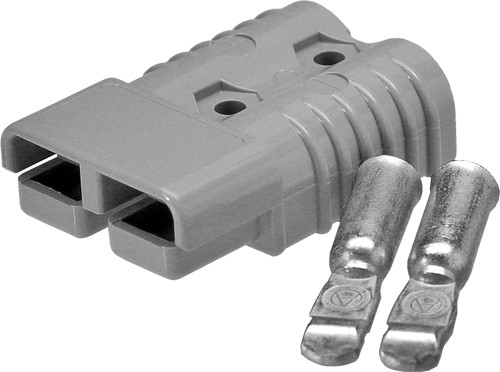

21175 - 175A storage cell connector. (1pc)

21175 - 175A storage cell connector. (1pc)
Product Code: 21175
Availability: In Stock
Price: $16.92
Ex Tax: $15.38


Storage cell (SC) connectors are also known generically as ‘Anderson Connectors’.

Mates with all competitor equivalents.

Mates with 21175 / 21176. The connector is rotated 1800 with mating half and, therefore, polarity aligns itself.

Grey housing is keyed for use with 0-36VDC applications. Other voltages/keying available upon request.

Housing kit 21176 is available.

The connector is not weatherproof and should be kept away from moisture and corrosive elements.


Specifications / features:

Terminal accepts up to  0B&S automotive / 50mm2 CSA / 0AWG  (when crimped) or  2B&S automotive / 33mm2 CSA  / 2AWG (when soldered)

Maximum/continuous current: 175A

Maximum (grey housing): 36VDC

Insulation withstand tested to: 2200VDC

Contact resistance: 100uOhm

Contact retention force: 136kg

Mating cycles: 10,000

Silver plated contacts

Self wiping during the mating and unmating cycle.

Stainless steel terminal retention springs.
