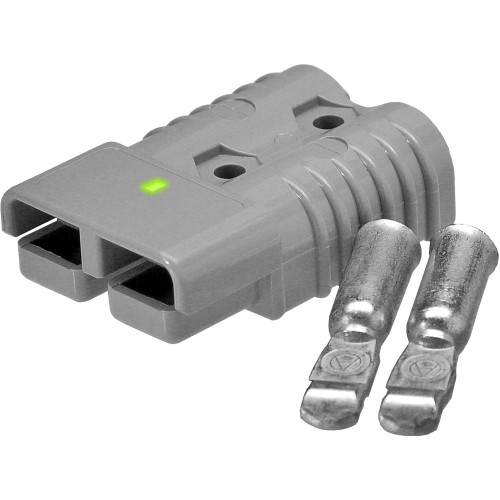

21055 - 50A grey storage cell connector with 12-24VDC LED. (1pc)
Storage cell (SC) connectors are also known generically as ‘Anderson Connectors’.
Mates with all competitor equivalents.
Mates with 21050 / 21051 / 21053 / 21055. The connector is rotated 1800 with mating half and, therefore, polarity aligns itself.
LED operates from 12 to 24VDC. LED may fail if used in applications where the voltage is higher than 28VDC.
The LED will only illuminate where the connector is wired according to the polarity markings on the housing.
The connector is not weatherproof and should be kept away from moisture and corrosive elements.
Specifications / features:
Terminal accepts up to 6B&S automotive / 15mm2 / 6AWG (when crimped) or 8B&S automotive / 7mm2 / 8AWG (when soldered)
Maximum/continuous current: 50A
Maximum (grey housing): 36VDC (28VDC where LED illumination is required)
Insulation withstand tested to: 2200VDC
Contact resistance: 200uOhm
Contact retention force: 22.7kg
Mating cycles: 10,000
Silver plated contacts
Self wiping during the mating and unmating cycle.
Stainless steel terminal retention springs.
