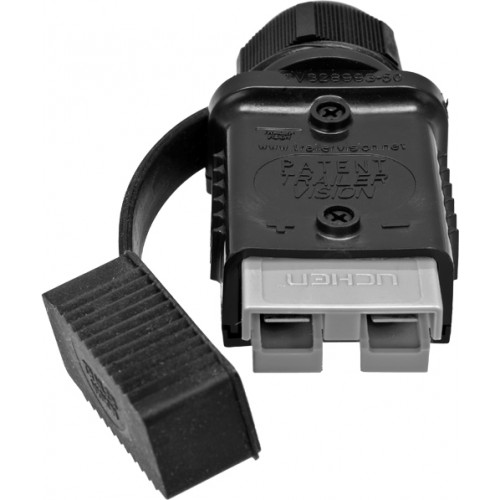

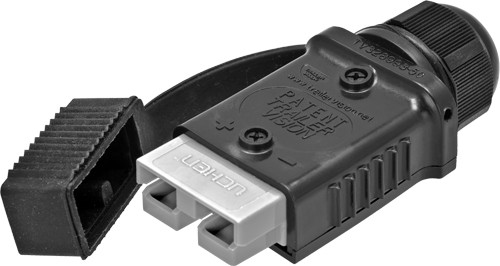

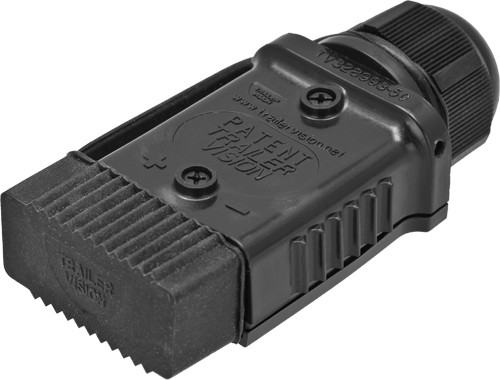

21053 - 50A grey storage cell connector housing kit with LED. (1pc)
Kit includes a line housing with boot cover which helps keep out contaminants and covers potentially live end terminals. Gland type cable entry secures cable and helps keep out contaminents.
Ships with 21050 SC connector.
Storage cell (SC) connectors are also known generically as ‘Anderson Connectors’.
Mates with all competitor equivalents.
Mates with 21050 / 21051 / 21053 / 21055. The connector is rotated 1800 with mating half and, therefore, polarity aligns itself.
Grey housing is keyed for use with 0-36VDC applications. Other voltages/keying available upon request.
The connector is not weatherproof and should be kept away from moisture and corrosive elements.
Housing features:
Compatible with most competitor connector brands.
Unique lock tab system secures mating connections.
Spring loaded access cover.
Heavy duty PA nylon construction.
Multiple mounting points
Rear entry cable seal
Stainless steel hardware
Supplied with mating lock connector tab
Connector Specifications / features:
Terminal accepts up to 6B&S automotive / 15mm2 / 6AWG (when crimped) or 8B&S automotive / 7mm2 / 8AWG (when soldered)
Maximum/continuous current: 50A
Maximum (grey housing): 36VDC
Insulation withstand tested to: 2200VDC
Contact resistance: 200uOhm
Contact retention force: 22.7kg
Mating cycles: 10,000
Silver plated contacts
Self wiping during the mating and unmating cycle.
Stainless steel terminal retention springs.
